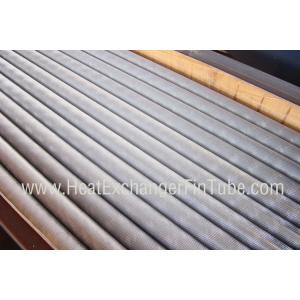

A179 cold drawn seamless carbon steel Extruded Fin Tube OD 1''

A179 cold drawn seamless carbon steel , OD 1'' , extruded cooling high fin tube
ASTM A179 / A179M - Seamless Cold-Drawn Low-Carbon Steel Heat-Exchanger and Condenser Tubes
Executive Standard: ASME SA179/SA179M, ASTM,DIN, JIS or GB standard
Tube Type:Seamless (Cold Drawn)
Ends:Plain ends or bevel ends.
Surface protection:black painting,anti-rust oil or varnish.

Detail:

Description:
Manufacturing Process
A smooth core tube is inserted into an aluminum sleeve and then the fins are extruded out of the aluminum sleeve.

Fin Types
The fins are solid plain or serrated into 12,16 or 24 segments.

Un-finned Sections
We provide extruded fin tubes with Unfinned Section gaps in the middle.

Protection of Ends
Both bare ends of Extruded Bimetallic Finned Tubes shall be Zinc or Aluminum that metallized applied by an electro spray arc system coating.

Accessories
Tube Support Box, Clamp or Spacer Box (Materials: Aluminum, Zinc or Stainless Steel).

Delivery Condition
Tube ends are square cut, free burrs, internally dried and air blown clean, externally coated with varnish at both ends of DR Type Tubes.
The desiccants are put into each package for continental transportation as well.

Applications:

The common application fileds are:

1. Heat exchangers units for power plant(electric, nuclear, thermal and geothermal power plants);
2. High corrosive systems (condensers, evaporators, sea water desalinations, fertilizing, urea systems, ammonia, gas, corrosive acids);
3. The petroleum, chemical and petrochemical industries;
4. The food processing and refrigeration industries;
5. Natural gas treatment;

Specifications:

Extruded Bimetallic Finned Tube is combined with two different materials.

Competitive Advantage:

1. We have more than 10,000 square meters workshop, including 10 extrusion finning machines, daily extrusion capacity up to 3,000 Meters.
2. The extrusion finning machines are designed and assembled by ourselves and we can offer you finning machines, extrusion muff sleeves and all accessories (extrusion finning disks) etc...
3. DR-extruded bimetallic fin tubes maximum operating temperature: 300 degree. The transfer coefficient remains steady.
4. DR-extruded bimetallic fin tubes have stronger fins than other mechanical fins, like L, LL, KL, and G, so it is much easier to clean.
5. In application of high stress and corrosive condiction, DR-extruded bimetallic fin tubes provides an excellent technical and economical savings in comparsion to a costlier single alloy tube, as the use of costlier material is reduced to the min.
